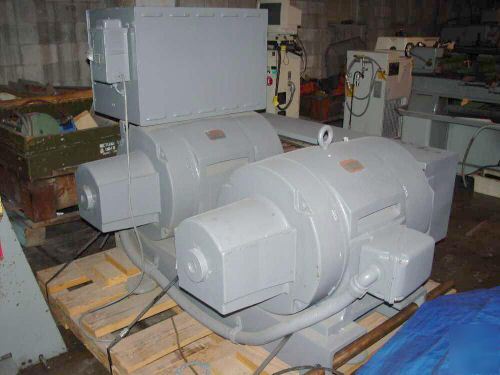

GENERAL ELECTRIC 125 KVA CYCLE CONVERTER Rebuilt by Matlock Electric 10/6/94 INPUT: 440/3/60 AC OUTPUT: 220/3/50 AC General Electric Control Panel with Motor Exciter Field Adjustments, Gages for Volts In, Volts Out, Frequency Out, Kilowatts Out, Frequency CATALOGUE SPECIFICATIONS MOTOR: General Electric, Tri-Clad Synchronous Motor. Horse Power........................................ 150 Speed.............................................. 1800 RPM Amps............................................... 180 Electrics.......................................... 440/3/60 CATALOGUE SPECIFICATIONS GENERATOR: General Electric , Tri-Clad AC Generator KW................................................. 100 KVA................................................ 125 Volts.............................................. 220 Apms............................................... 328 Cycle.............................................. 50 HZ Speed.............................................. 1500 Frequency Regulation: 50.0 HZ from No-Load to Full-Load (withReliable60HZ Input to Motor) Voltage Regulation: +/- .5% From No-Load to Full-Load. Voltage Adjustment Range: +/- 10% in Stepless Increments Voltage and Frequency Modulation: Less Than .5% Harmonic Distortion: 5% Total RMS Condition: Unit was rebuilt by Matlock Electric in 1994 and used very little since the rebuild. The Unit is from Cincinnati Milacron's Plastic Division and was used only to test machines they made for 50 Cycle Countries. Finance Equipment For Your Business - Click Here Ph: Fax: Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (Ohio). A sales tax exemption certificate will be required if you are a Ohio company. Equipment purchased for personal use is subject to sales tax if you are a Ohio resident. Refunds & Returns, 30 Day MDNA Guarantee The best way to contact us is via email () or via our toll-free number from anywhere in the US or Canada. From Outside the US & Canada call . Our FAX number is . We are in our office available to answer your calls and emails 9:30 AM to 5 PM Eastern Time Monday thru Friday. We sometimes work Saturdays as well, but no guarantees - call if you want to come here on a Saturday - there's a strong possibility we will be working. We are closed every Sunday and all National Holidays. Our average length of time to respond to emails is a few hours. However if an Item closes after 5:00 EST on a Friday you probably won't here from us until Monday. |
