GLOBAL EQUIPMENT & MACHINERY SALES IS A WORLDWIDE SUPPLIER OF QUALITY USED MACHINERY FOR THE PULP & PAPER, AND THE PAPER, FILM & FOIL CONVERTING INDUSTRIES.
53" (1350MM) FLEXOTECNICA TYPE 106 MDL THEMA 130

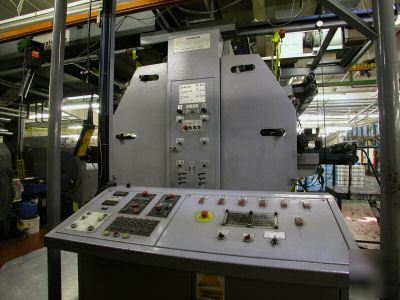

Used 51" (1300mm) wide Flexotecnica type 106, model THEMA 130 6-color flexographic printing press. Repeat range 12" - 39" (300mm - 1000mm). 10mm (16DP) Gear pitch. Maximum speed is 250 MPM. 40" (1000mm) O.D. capacity turret unwind and rewind stands. Flying splice on rewind for fast change over. Automatic tension control system. Print registration reported at +/- .25mm on OPP. Direct drive for print quality enhancement. Motorized positioning system for the decks using linear potentiometers and hydraulic motors for ease of operation and flexibility, and provides significant time savings when changing jobs. Central Lubrication system. Gas Drying for inter-color drying and one gas burner for final drying in the tunnel. 6 + 2 spare x Aluminum totally enclosed reverse chambered doctor blades.
Machine has been well maintained and ran both paper and film substrates. Manufactured in 1989. Serial number 1045
This Press can be used for both Films and Paper.
Complete Manuals and Drawings are available!
