Eagle SC2-400-108-36 straight-side press

UpUp


Subject: Eagle SC2-400-108-36 straight-side press

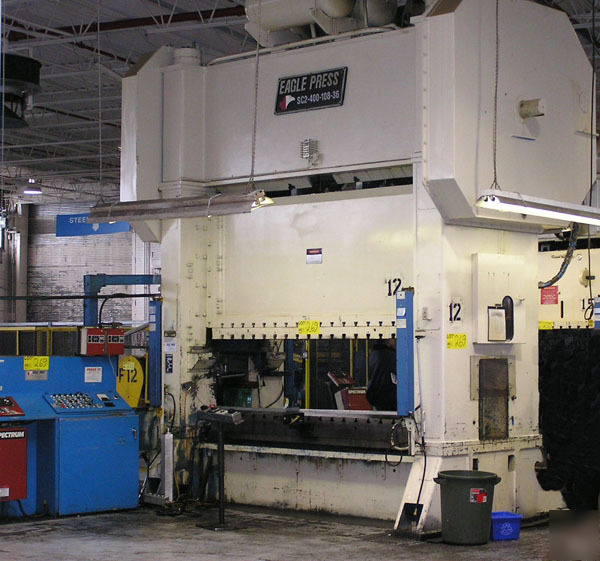

EAGLE MODEL SC2-400-108-36 GEARED DESIGN, STRAIGHT-SIDE, DOUBLE CRANK PRESS*
Capacity: 400 Ton
Stroke: 8"
Shut Height over Bed (SDAU): 40"
Slide Adjustment (Motorized): 6"
Distance Floor to Bed: 30"
Bed Area: 108" L-R x 36" F-B
Slide Face Area: 108" L-R x 36" F-B (T-Slotted)
Window Openings: 18" Wide x 30" High (22" over Bolster)
Opening in Bed: 78" x 83"
Speed (Variable): 20 - 40 SPM
Air Clutch and Brake with Selector Controls
Enclosed Gears Running in Oil
Tie Rod Construction with Hydraulic Nuts
EQUIPPED WITH:
Wintriss Spectrum Tonnage Control
(4) Air Counterbalances to Slide
Pneumatic Die Cushion in Bed
T-Slotted Bolster Plate (8" Thick)
Automatic Recirculating Lubrication System
75 HP AC Vari-Speed Main Drive Motor
Electrical Controls
Approximate Overall Dimensions: 190" L-R x 110" F-B x 226" H
Approximate Weight: 126,000 Lbs.
Serial Number: EP63-050191 (New 1991)
P2 F.O.B. BARRIE, ON - $135,000.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
