Cnc horizontal maching center berardi al-ts 130 atc


Subject: Cnc horizontal maching center berardi al-ts 130 atc
This machine is in an good operating condition and is presently under power and can be seen by appointment in Southern Ohio. For more information call or email at .

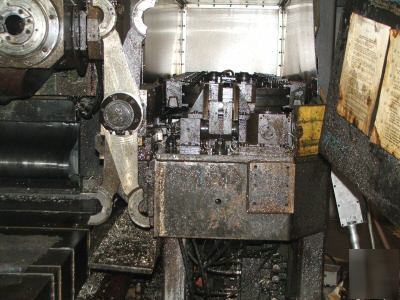

The Berardi AL-TS 130 CNC Horizontal Machining Center with Automatic Tool Changer holding a quantity of 31 tools approximate specifications are as follows:
Table Cross Travel (X-axis) 61"
Vertical Head Travel (Y-axis) 59"
Table Longitudinal Travel (Z-axis) 88.5"
Swiveling Head Travel (A-axis) + 90 to 136 degree (Minimum Tilting Increment of 1 degree)
Clamping Area 37.4 x 37.4"
Maximum Table Load (Even) ????
Central Table Hole Diameter 50H6
Minimum Indexing Angle Full Contour
Pallet Exchange Time 90 Seconds
Spindle Speeds 0 - 1400 Rpm
Spindle Ranges 2 Inf. Variable
Rapid Traverse 315 in/min
Cutting Feeds (x,y,z) 0 - 157 in/mim
Automatic Tool Changer Capacity 31 Tools
Maxinum Tool Diameter 4.9 - 9.84"
Maximum Tool Length 15.74"
Maximum Tool Weight 77 pounds
Circular Interpolation (xy)(xz) (yz)
Helical Interpolation (xy) with (z)
Conversational Programing Seimens
Program Storage 29,000 characters
Maximum Positioning Error (measured in X, Y, or Z) 0.0002"
Angular Positioning Error of Table +/- 3 arc seconds
Angular Positioning of Head +/- 3 arc seconds
Please review our "Feedback and About Us" where you will find that we ALWAYS try to fairly describe all items and offer a 7 day return guarantee (freight prepaid) if item is not as listed.
We thank you in advance for your interest in this item and should you have any questions please feel free to ask them of us and we will try to answer them.
