Subject: Bridgeport series ii vertical mill

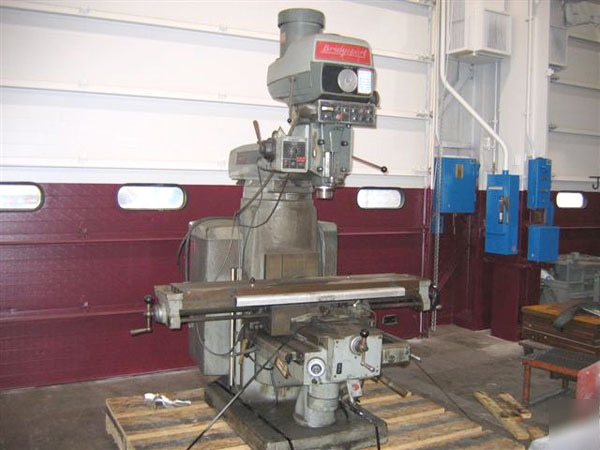

BRIDGEPORT SERIES II VERTICAL MILLING MACHINE*
Table Area (T-Slotted): 58" L-R x 11" F-B
Table Travel: 30" - Longitudinal
15" - Cross
16" - Vertical (Knee)
Vertical Capacity: 6.75" to 18.75"
Quill Travel: 5"
Throat: 10-5/8" - Minimum
26-5/8" - Maximum
Variable Speed Head: 50 - 3500 RPM (2 Speed Ranges)
EQUIPPED WITH:
4 HP Model Variable Speed Head
Power Quill Up and Down Feed
Micrometer Quill Depth Stop
Electrical Push Button Controls
Approximate Overall Dimensions: 72" L-R x 84" F-B x 96" H
Approximate Weight: 6,500 Lbs.
Serial Number: 3402 (New 1976)
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
