Subject: #9486 - pines #4 hydraulic tube bender (ccw)

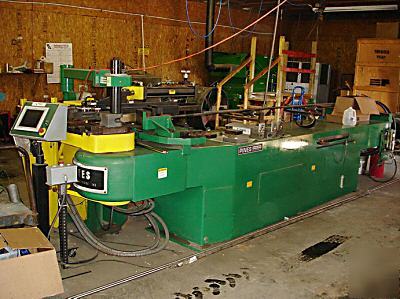

PINES #4 HYDRAULIC TUBE BENDER (CCW)
Maximum bend angle 180 deg.+ over bend for springback
Bend angle accuracy +/- 0.1 deg.
Maximum tube length over mandrel 13' 6"
Max. tube length over mandrel Any length
Reservoir capacity 122 gallons, U.S.
Maximum bending capacity round tubing, mild steel
Square tubing, mild steel 4" x .250
Springback calculation & compensation
Manifold style hydraulics with high pressure filter
