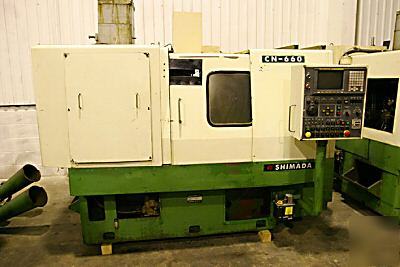

SHIMADA MODEL CN-660 6-SPINDLE CNC AUTOMATIC CHUCKING MACHINE Pull type collet dia. 70mm (at front bearing) / .275" Power chuck capacity (option) 5" (2-jaw/3-jaw) Position of NC slide On no.4 station Control axes 2 axes simultaneous (X/Z) Minimum input increment 0.001mm (X/Z) / .00003" X/Z axis stroke 120mm / 120mm / 4.72" Rapid feed rate (X/Z) 10m/min. Position of cross slide On no.5 station Two-throw hydraulic pump motor 2.95KW(2.3+0.75KW) / 4 HP Spindle carrier: Distance between spindles 140 mm / 5.51" Dimensions: L x W x H 2,050 x 2,450 x 1770 mm / 81" x 96" x 70" 10 HP Main spindle drive motor 6 Spindles with (6) 5" 3-Jaw power chucks Hydraulic servo drive for end tool slide |
