Subject: 80' trylon S100 self supporting antenna tower

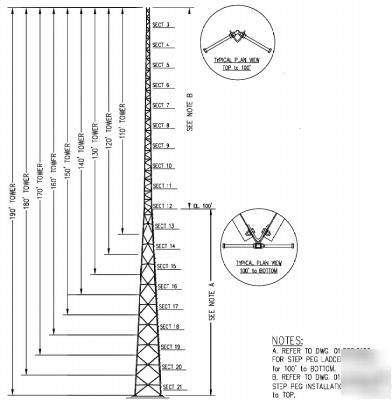

NEW GALVANIZED STEEL, SUPER TITAN, HEAVY DUTY, ANTENNA TOWER, WITH ALL HARDWARE TO INSTALL. ALL 10' SECTIONS. TOWER LEGS ARE 60 DEGREE ANGLE, BRACING IS 90 DEGREE ANGLE ON DIAGONAL PATTERN, NO HORIZONTALS. ALL HARDWARE IS HIGHEST QUALITY.
BOLTS ARE 1325 STRUCTUARL BOLTS THE STRONGEST AND ONLY BOLT TYPE ALLOWED IN THE UPCOMING EIA 222 REVISION "G".
WIND LOADING MPH / MAX. FLAT PLATE
70 MPH / 85MPH / 100MPH
13 SQ FT / 0 SQ FT / 0 SQ FT
OPTIONS WILL DESIGN FOR YOUR APPLICATION WITH PE STAMP FOR TOWER AND FOUNDATION DESIGN, ALL LOWER STATES ONLY.
CALL OR EMAIL FOR FREIGHT QUOTE.
