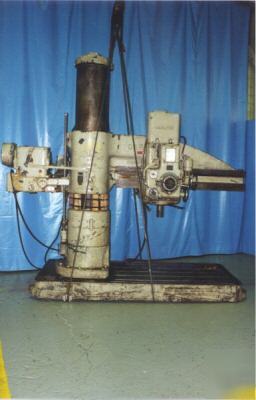

Subject: 6'19" carlton radial drill #21559
New 1942, Serial No 4A-2029, Model 4A,
Power Feed to Head - Power Column Clamping
Arm Length............................. 6'
Column Diameter........................ 19"
Horizontal Head Travel on Arm.......... 60"
Vertical Arm Travel on Column.......... 48"
Vertical Spindle Travel in Head........ 20"
Spindle-Radius, Minimum................ 25.5"
Spindle-Radius, Maximum................ 85"
Spindle-Nose to Base, Minimum.......... 10"
Column-Face to Spindle, Minimum........ 12.75"
Column-Face to Spindle, Maximum........ 78"
Drills to Center of Circle on Base..... 144"
Base Working Surface, W x L............ 50" x 77"
Base Height............................ 10"
Spindle Nose Diameter.................. 4"
Spindle Taper.......................... #6 MT
(48) Spindle Speeds, Range............. 15 to 1500 RPM
Spindle Feeds, Range................... .004 to .125 IPR
Tapping Leads, Range................... 8 to 18 TPI
Spindle Motor, Horsepower/RPM.......... 20 HP/1750 RPM
Electrical System...................... 208-220-440/3/60
Extreme Height, Column Above Floor..... 11'9"
Extreme Height, Head & Arm Extended.... 12'1"
Weight, Approximately.................. 23300 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $3,950.00
All machines/equipment subject to prior sale.
