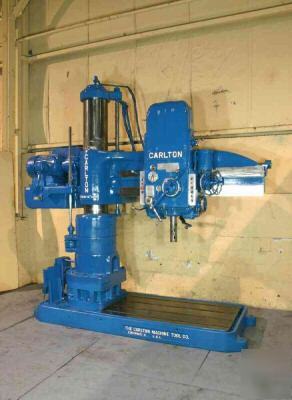

5' x 13" carlton radial drill, model #3A-4813, 20 hp

UpUp


Subject: 5' x 13" carlton radial drill, model #3A-4813, 20 hp
SERIAL ............................ 3A-4813
MODEL ............................. 3A
AREA OF BASE ...................... 63´´ X 42´´
SPINDLE SPEEDS .................... (36) 12 - 1200 RPM
SPINDLE FEEDS ..................... (18) .004´´ - .125´´ IPR
SPINDLE STROKE .................... 18´´
DIAMETER OF SPINDLE ............... 3-1/4´´
TAPER IN SPINDLE .................. 5 MT
THREADS ........................... 8, 11-1/2, 14, 18 TPI
DISTANCE SPINDLE TO BASE .......... 22-1/2´´ MIN, 78´´ MAX
COOLANT ........................... YES
POWER ELEVATION ................... YES
POWER CLAMPING .................... YES
POWER HEAD TRAVERSE ............... YES
12" COLUMN RISER .................. YES
MOTOR ............................. 20 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
