Subject: 312 torrington 2-die rotary swager 22260 & 22262

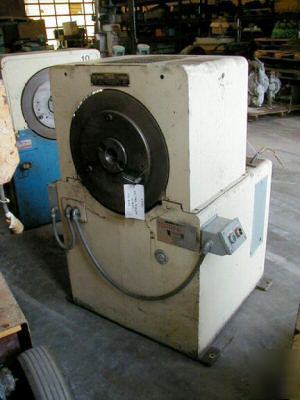

312 TORRINGTON 2-DIE ROTARY SWAGER
New 1990, Serial No. 9033, Model 312
(12) Rolls - 1-1/2" Diam. x 2-7/8"
Solid Diameter Capacity, Maximum.......... 3/8"
Tube Diameter Capacity, Maximum........... 7/8"
Hole Diameter Thru Spindle................ 29/32"
Longest Taper, In One Operation........... 2-3/8"
Die Size, Length.......................... 2.5"
Die Size, Width........................... 1.187"
Die Size, Height.......................... 1.175"
Backer Size, Length....................... 2.5"
Backer Size, Width........................ 1.187"
Backer Size, Height....................... 1.513"
Spindle Speed............................. 320 RPM
Blows Per Minute.......................... 2300 BPM
Height, Floor to Spindle CL............... 36"
Motor Horsepower.......................... 3 HP
Electrical System......................... 230-460/3/60
Overall Dimensions, L x W................. 2'11" x 3'
Overall Height............................ 4'2"
Weight Approximately...................... 1437 LBS
PRICE: F.O.B. CONNECTICUT................ $8,250.00
All machines/equipment subject to prior sale.
