2596 cubic foot peabody bolted carbon steel silo tank

UpUp


Subject: 2596 cubic foot peabody bolted carbon steel silo tank

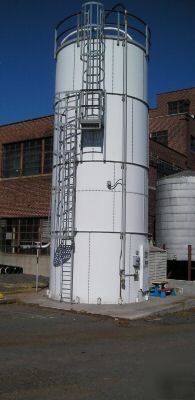

USED 2596 CUBIC FOOT PEABODY TEC BOLTED CARBON STEEL SILO.
12' DIAMETER X 31' STRAIGHT SIDE. ON SKIRT. BUILT 1996.
Date 8-96Serial # 63710Diameter 12 ftHeight 31 feetNominal Capacity 2596 CFProduct: Flyash - Alumina - CACO3Compacted Density: 85 PCFDesigned for Funnel Flow loadsMax Op press oz/sq in 2.0vacuum oz/sq in 0.5Made by Peabody Tectank
Included is a Professional Engineering Associates live bottom bin discharger, model VH-6, carbon steel
The Silo has been dismantled and stored in our yard in SOUTH PLAINFIELD, NJ 07080.
Additional pictures and info can be obtained at link below.
http://www.dallascontracting.com/index.php?mod=ForSale&op=read&id=40
