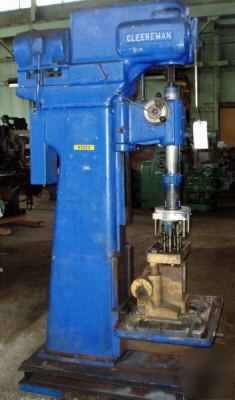

25" CLEEREMAN SINGLE-SPINDLE DRILL New 1962, Serial No 25C-1588, Model 25C Spindle-Head Adjustment, Vertical...... 18" Spindle Travel, Manual................. 12.5" Spindle Travel, Power.................. 12" Spindle-Nose to Table, Maximum......... 33" Spindle-Nose to Base, Maximum.......... 46" Spindle-Center to Lower Column......... 12.5" Spindle-Center to Upper Column......... 11.5" Swing to Plane of Table................ 25" Table Adjustment, Vertical............. 12" Table Working Surface, W x L........... 19" x 24" Base Working Surface, W x L............ 21" x 23.5" Spindle Taper.......................... #4 MT (12) Spindle Speeds, Range............. 75 to 1500 RPM (9) Spindle Feeds, Range............... .005 to .045 IPR Spindle Motor, Horsepower.............. 5 HP Overall Dimensions, W x D.............. 2'5" x 4'10" Overall Height......................... 9' Weight, Approximately.................. 3600 LBS PRICE: F.O.B. OUR WAREHOUSE............ $2,450.00 All machines/equipment subject to prior sale. |
