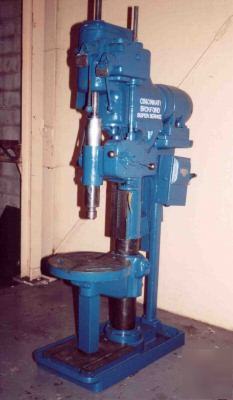

24" CINCINNATI BICKFORD SINGLE SPINDLE DRILL SERIAL ........................................ 2L840 MODEL ......................................... 24´´ ROUND COLUMN DEPTH OF THROAT ............................... 12-1/2´´ DIAMETER OF TABLE ......................................... 22´´ AREA OF BASE .................................. 19´´ X 17´´ SPINDLE SPEEDS ................................ (12) 90 TO 1500 RPM POWER FEEDS ................................... (9) .005 TO .043 IPR SPINDLE TRAVEL ................................ 10´´ DIAMETER OF SPINDLE ........................... 4´´ TAPER IN SPINDLE .............................. #4 MT TRAVEL OF HEAD ON COLUMN ...................... 16´´ VERTICAL TABLE ADJUSTMENT ..................... 14-1/2´´ MAXIMUM DISTANCE SPINDLE TO BASE ............. 44-5/8´´ MAXIMUM DISTANCE SPINDLE TO TABLE ........... 29-3/8´´ 5 HORSEPOWER SPINDLE DRIVE MOTOR CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
