24" avey, model #3 single spindle drill, s/n #33424

UpUp


Subject: 24" avey, model #3 single spindle drill, s/n #33424

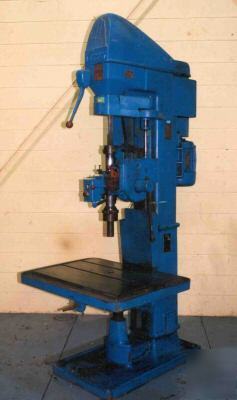

24" AVEY, MODEL #3 SINGLE SPINDLE DRILL
SERIAL ................................... 33424
MODEL .................................... #3
DEPTH OF THROAT .......................... 12´´
WORKING SURFACE OF TABLE ................. 34´´ X 25´´
SPINDLE SPEEDS ........................... (6) 95 TO 1130 RPM
SPINDLE FEEDS ............................ (4) .002,.008,.012 & .020 IPR
SPINDLE TRAVEL ........................... 8´´
VERTICAL HEAD TRAVEL ..................... 10´´
VERTICAL TABLE TRAVEL .................... 19-1/2´´
DISTANCE SPINDLE TO TABLE ................ 0´´ TO 28´´ MAXIMUM
TAPER IN SPINDLE ......................... #3 MT
MOTOR .................................... 3 HORSEOWER
