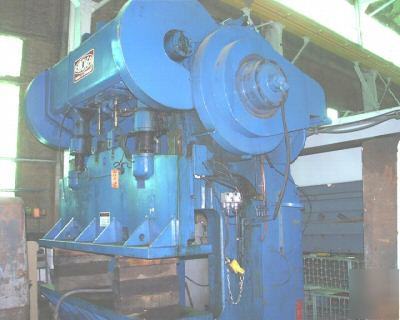

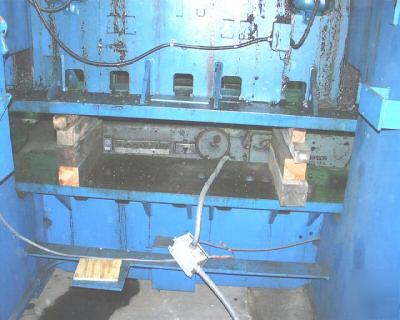

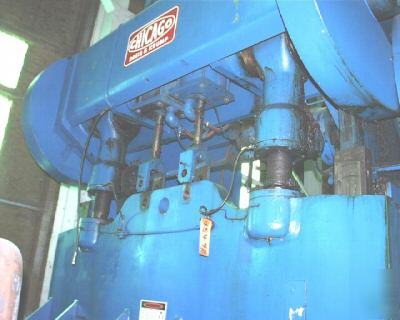

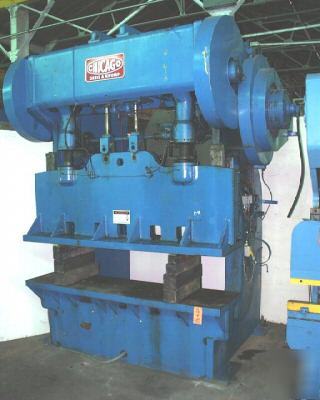

225 Ton Dreis & Krump Flanged Bed Press MODEL NUMBER........225-D6 225 Ton Dreis & Krump Flanged Bed Press SERIAL NUMBER.........P-9793 APPROX. YEAR: 1975 225 Ton Dreis & Krump Flanged Bed Press GENERAL SPECIFICATIONS Permanent Flanged Bed, 24" x 96" Permanent Flanged Ram, 24" x 96" Distance Between Housings, 6'-6" Shut Height, Stroke Down, Adj. Up Over Bed, 24" Ram Adj. Motor, 1 1/2 HP 1725 RPM 230/460/60/3, With Brake Drive Motor, 15 HP 1690 RPM 220/440/60/3 (2) Air Counter Balance Cylinders on Ram C/L of Ram to Face of Side Housing, 18 1/2" |
