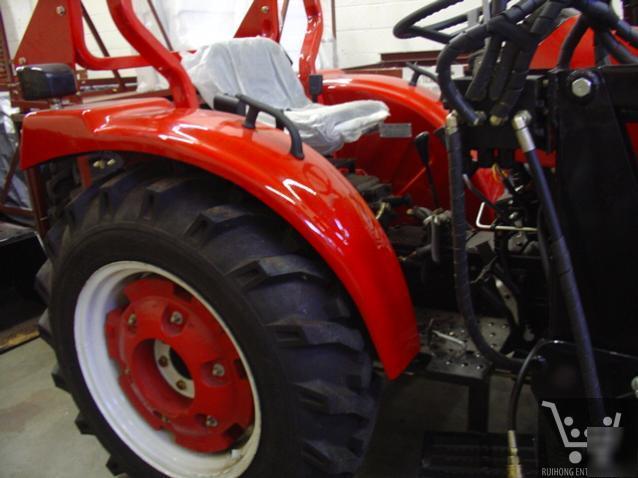

2007 Jinma 254 Diesel Tractor w/ Loader and Backhoe EPA
* in stock !! * EPA * 1 year warranty - low delivery !
ADDITIONAL ACCESSORIES INCLUDED :
2006 Jinma 254 Diesel Tractor w Loader and Backhoe EPA
* AG. Tyres fitted as standard
Cylinder head: HT200 alloy cast iron with copper and chromium
Crankshaft drive: by crankshaft through helical tooth spur gear at blower end
Crankshaft case: grey cast iron
Injection pump: plunger pump series I (right spiral)
Governor: model T7B-speed, mechanical centrifugal
Cooling system: forced water cooling
Lubrication: oil pressure and splash lubrication
C. Overall width (min.): 1330 mm
D. Heigh over exhaust: 1882 mm
E. Height over safety frame: 2085 mm
Type: 3-cylinder vertical, water cooled, 4-stroke, swirl combustion chamber
Rotations: Counterclockwise (view toward flywheel)
Type: semi-independent dual speed (540 r/min/1000r/min)
Speed/@engine rpm: PTO 540/2077 rpm, PTO 1000/2150 rpm
Alternator: 2JF200, 200W, 14V Starter: QD100C3, 2.2KW, 12V Battery: 6-Q(A) - 100, 100A.H, 12V Lights: 2 head light, 2 signal light, 1 tail lamp
Type: dual stage, gear operation
Type: 2 x (3+1) x 2 compound type
Speed range: 0.31-25.97 km/hr / 0.24-5.96 km/hr
Maximum PTO horse power measure at 2350 rpm: 25 HP
Type of pump: CBN-E314 gear pump
Max. flow at remove valves: 9dm3
Type of remove valves: safety valve
Lift cap @ hitch pt: 3900N (at 610mm behind lift point)
Pendulum angle of front axle: 12 degrees
Tires: front wheel 6.00-16, rear wheel 9.5-24
Tire inflation pressure (kpa): front wheel 180-200, rear wheel (in field) 100-120, rear wheel (transportation) 120-140
Jinma Tractor Front End Loader
* Recommended Tractor HP: 20-25
* Bucket Capacity: 7.06 cubic feet
* Clearance W/Bucket Dumped: 80"
* Reach at Maximum Height: 16"
* Maximum Dump Angle: 16 degree
* Reach W/Bucket on Ground: 59"
* Bucket Rollback: 17 degree
* Overall Height in Carry Position: 61"
* Lift capacity to full height: 875 Lbs.
* Breakaway Capacity: 2200 Lbs (load at which entire system will collapse)
* Hydraulic Control Valve: Two Spool Selective Control Valve for Loader and Bucket Cylinders.
* Lift Bucket and Cylinders: Double Acting
* Bucket Control: Hydraulic Twin Cylinder
* Bucket Cylinder Size (Twin) 2" Bore X 23" Stroke
* Lift Cylinder Size: 2" Bore X 23" Stroke
* Approximate Weight (Less Mounts) 597 Lbs
* Bucket Dump Time: 5.0 Seconds
* Bucket Rollback Time: 4.0 Seconds
* Actual time sequence may vary with engine RPM
Jinma 200 Series Frame Mount Backhoe
* Bucket capacity: 1.060 cubic feet.
* Bucket width: 11 inches at rear and 15 inches across the face
* Over-all dimensions (during transportation): H7.5*L14.7*W5.2 feet
* Maximum digging depth: 5.9 feet
* Maximum digging radius: 9.18 feet
* Bucket rotating angle: 160°
* Discharging height: 8.2 feet
* Extension width (with supporting legs extended): 5.9 feet
