Subject: 200 ton warco back geared obi press, serial # 5298

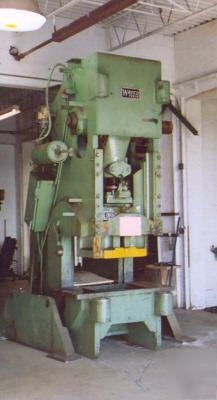

200 TON WARCO BACK GEARED OBI PRESS
SERIAL ........................... 5298
MODEL ............................ 200
CAPACITY ......................... 200 TON
STROKE OF SLIDE .................. 6´´
SLIDE ADJUSTMENT ................. 5´´
SHUT HEIGHT, OVER BED, SDAU ...... 19´´
AREA OF BED ...................... 52´´ X 30-1/2´´
AREA OF RAM (T SLOTTED) .......... 28-3/4´´ X 26´´
STROKES PER MINUTE ............... 41
WIDTH OF HOLE THROUGH BACK ....... 25´´
DEPTH OF THROAT (GAP) ............ 17´´
BOLSTER (T SLOTTED) .............. 50´´ X 30´´ X 4-1/2´´
AIR CLUTCH ....................... YES
DUAL PALM BUTTONS ................ YES
MOTOR ............................ 20 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
