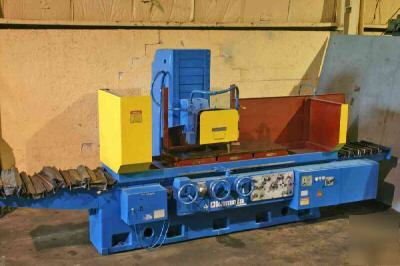

20" X 60" OKAMOTO HYDRAULIC SURFACE GRINDER SERIAL .............................. 1930 MODEL ............................... PSG-155B YEAR NEW ............................ 1988 CAPACITY ............................ 20´´ X 61´´ MAXIMUM UNDER NEW WHEEL ............. 23-1/2´´ HYDRAULIC TABLE TRAVEL, VARIABLE .... 1 TO 100 FPM AUTOMATIC HYDRAULIC CROSS FEED ...... 20´´ TO 1.37´´ CONTINUOUS CROSS FEED, VARIABLE ..... 1 TO 16.4' INCREMENTAL DOWN FEED ............... .0002´´ TO .002´´ POWER SPINDLE ELEVATION (RAPID) ..... 12 IPM DIAMETER OF GRINDING WHEEL .......... 20´´ X 2´´ X 5´´ MAGNETIC CHUCK ...................... 20´´ X 60´´ X 4-1/2´´ VARIABLE HOLD CHUCK CONTROLLER ...... YES OVER WHEEL DRESSER .................. YES COOLANT ............................. YES SPINDLE MOTOR ....................... 10 HORSEPOWER HYDRAULIC DRIVE MOTOR ............... 7-1/2 HORSEPOWER CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! |
