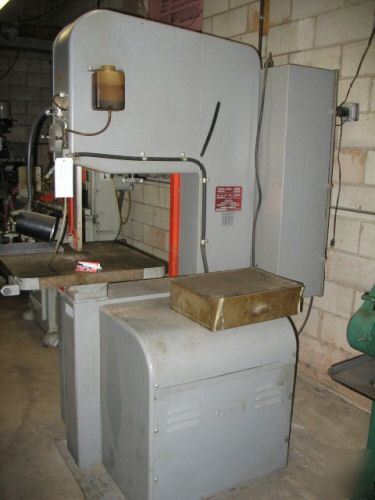

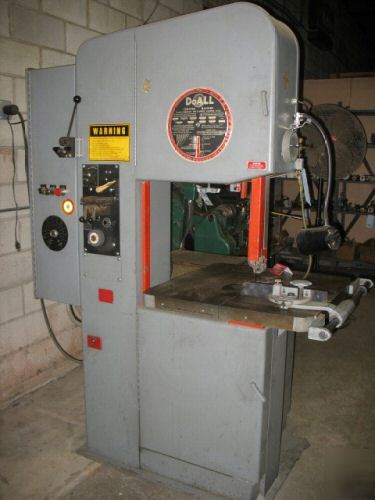

THROAT, BAND TO COLUMN ............................ 20" MAXIMUM WORK HEIGHT ............................... 13" BAND WIDTH CAPACITY ...................... 1" SAW BAND LENGTH .................................. 154" FILE BAND LENGTH ................................. 153" BAND SPEED RANGE, VARIABLE ............... 5 TO 300 FPM 850 TO 5,200 FPM TABLE SIZE .................................. 26" X 26" TABLE TILTS ......... 45 DEGREES LEFT, 10 DEGREES RIGHT MAXIMUM WEIGHT ON TABLE ....................... 500 LBS APPROXIMATE MACHINE WEIGHT .................. 2,000 LBS EQUIPPED WITH: DOALL HI-TORQUE DC ELECTRONIC DRIVE - DRIVE SYSTEM DELIVERS UP TO 85% OF TORQUE DIRECTLY TO THE BAND DRIVE WHEEL. ELECTRONIC SPEED CONTROL HOLDS BAND SPEED AT THE PROPER SETTING SO THAT SPEED- CHANGE IS INSTANTANEOUS. BY ELIMINATING MANY COMPONENTS OF THE MECHANICAL SPEED CONTROL ASSEMBLIES, VIBRATION IS MINIMALIZED, WHICH PROVIDES FAR BETTER BLADE LIFE. FIELD TESTING CONFIRMS THAT DOALL'S DC DRIVE SYSTEM DELIVERS UP TO TWICE THE BLADE LIFE OF MECHANICAL DRIVE DOALL DBW-15 WELDER/GRINDER/SHEAR MACHINED IS WIRED FOR THREE PHASE 60 CYCLE 230 VOLT OPERATION Questions Call Dave @ |
