2-stage haskel ats-152 gas pressure booster 25,000 psi


Subject: 2-stage haskel ats-152 gas pressure booster 25,000 psi
2-Stage Haskel ATS-152 Gas Pressure Booster 25,000 psi.

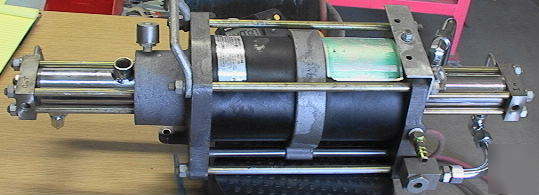

You feed this thing about 100 psi compressed air on the right where the air hose nipple is in the image above. It takes the high pressure gas in on the (open hole) port on the right, compresses it and moves it to the second stage and the final high pressure gas comes out the port on the left. The driving compressed air is exhausted out the hole on the top left.
Click the following link for the factory gas booster website-not specific to this unit.
The label is rather hard to read so we have included several images of it. It looks like maximum input and output pressures are 2500 and 25,000 psi with typical values of 1000 and 15,000. It looks like it pumps 3.1 cubic inches (input side) per stroke.
Other similar items may be available listed separately or on request.
Might be just what you need for your gas pressure amplifier application.
Condition looks good used and we tested basic operation at low pressure. Would recommend servicing it before using for maximum performance.
Click cavlon99 all to see items from the past 30 days-might be something you need that did not sell.
Click here to check for last minute updates and cavlon99 news
Listing description is correct to the best of our knowledge
