2 hp bridgeport serial 1 ram type vertical mill

UpUp


Subject: 2 hp bridgeport serial 1 ram type vertical mill

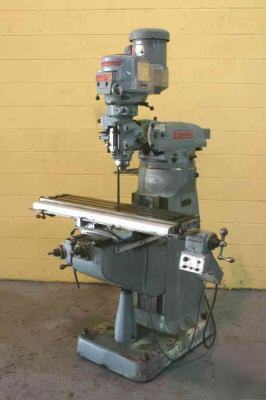

2 HP BRIDGEPORT SERIAL 1 RAM TYPE VERTICAL MILL
SERIAL ................................... BR12-184368
MODEL .................................... SERIES 1
AREA OF TABLE ............................ 42´´ X 9´´
SPINDLE SPEEDS (VARIABLE) ................ 60 TO 4200 RPM
SPINDLE FEEDS ............................ .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ................ 30´´
CROSS TRAVEL ............................. 12´´
VERTICAL TRAVEL OF KNEE .................. 16´´
QUILL TRAVEL ............................. 5´´
POWER LONGITUDINAL TABLE TRAVEL .......... YES
HEAD TILTS, FORWARD/REVERSE .............. 60 DEGREE
HEAD SWIVELS, LEFT/RIGHT ................. 90 DEGREE
DEPTH OF THROAT .......................... 6-3/4´´ TO 18-3/4´´
SPINDLE TAPER ............................ R-8
MOTOR, HORSEPOWER ........................ 2
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
