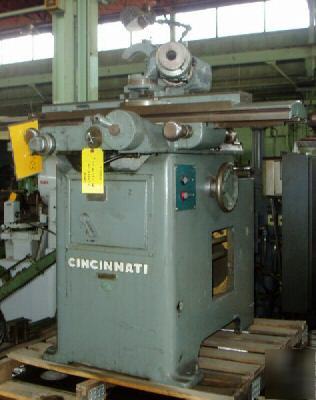

2 CINCINNATI-MILACRON TOOL & CUTTER GRINDER
New 1960, Serial No. 1D2T5J-4, Model "LL"
360-Degree Eccentric Swivelling Wheelhead
Swing Over Table, Maximum.............. 10"
Between Tailstock Centers.............. 27"
Between Workhead & Tailstock........... 21-1/2"
Table Working Surface, L x W........... 36" x 5-1/4"
Longitudinal Table Travel.............. 16"
Cross Table Movement................... 8"
By Wheelhead Eccentricity.............. 3-1/2"
Cross Range of Wheelhead............... 11-1/2"
(2) Wheel Speeds....................... 3890 & 6530 RPM
Vertical Movement...................... 10-1/2"
Grinding Wheel Spindle Swivel, Deg..... 360-DEGREES
Table Swivels, Degrees................. 180-DEGREES
Motor, Horsepower/RPM.................. 1 HP/3450 RPM
Electrical System...................... 208-220-440/3/60
Floor Space............................ 68-1/2" x 56-1/2"
Weight, Approximately.................. 2250 LBS
NOTE: Machine Appears To Be In Real Good Condition.
PRICE: F.O.B. OUR WAREHOUSE WAS........ $3,500.00
NOW.................................... $2,450.00
All machines/equipment subject to prior sale.
