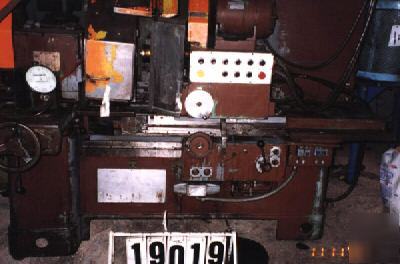

#273A HEALD "UNIVERSAL" INTERNAL GRINDER New 1970, Serial No 45063, Model 273A, Heald "Red-Head" Grinding Spindle Swing Over Table, Workhead Parallel...... 24.5" Swing Inside Coolant Splash Guard........ 20" Swing w/Workhead @ 90-Degrees............ 13" Bore Length Ground, Maximum.............. 16" Grinding Stroke, Minimum................. .125" Grinding Stroke, Maximum................. 16" Table Longitudinal Travel................ 20" Wheelhead Cross-Slide Travel............. 1.5" Workhead-Slide Travel, Positioning....... 17.5" Workhead Swivel Angle, Maximum........... 90-DEGREES Workhead Spindle Speeds, Range........... 0 to 500 RPM Grinding Table Speeds, Infinite.......... 0 to 18 FPM Power Rapid Table Traverse............... 18 FPM Grinding Spindle Motor, Horsepower....... 5 HP/3500 RPM Workhead Chuck Motor, Horsepower......... 1.5 HP Workhead Chuck Motor, RPM................ 0 to 3600 RPM Overall Dimensions, W x D................ 8'0" x 7'7" Weight, Approximately.................... 6200 LBS CONDITION: Appears to be in Good Condition. PRICE: F.O.B. OUR WAREHOUSE............. $2,950.00 All machines/equipment subject to prior sale. |
