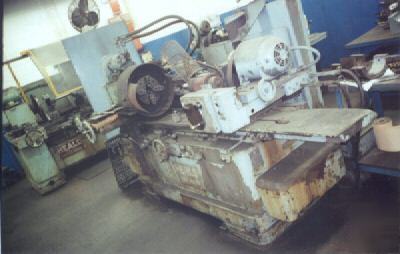

#272 HEALD "TOOLROOM" INTERNAL GRINDER New 1953, Serial No. 32549, Model 272, Heald "Red Head" Grinding Spindle Variable Speed Hydraulic Workhead Motor Swing Over Table, Maximum............... 26" Swing Inside Coolant Splash Guards...... 20" Hole Diameter, Maximum.................. 21.75" Bore Length Ground, Maximum............. 14" Table Longitudinal Travel............... 30.25 Workhead Spindle Flange, Diameter....... 9.625" Grinding Angle, Maximum Included........ 60-DEGREES Workhead Spindle Speeds, Range.......... 133 to 400 RPM Grinding Table Speeds, Infinite......... 0 to 15 FPM Power Rapid Table Traverse.............. 35 FPM Wheelhead Spindle Motor, Horsepower..... 5 HP Hydraulic Motor, Horsepower............. 1.5 HP Floor Space Required, W x D............. 7'3" x 10'3" Weight, Approximately................... 8700 LBS PRICE: F.O.B. OUR WAREHOUSE............ $3,500.00 All machines/equipment subject to prior sale. |
