220 mhz repeater or 220 base station (will do both)


Subject: 220 mhz repeater or 220 base station (will do both)
Continous duty - Used in Trunking applications, general dispatch operation, paging or data, ideal for settng up a reliable 220 Amateur Repeater.
99 Channel Binary Selectable, 100 Watt Transmitter, accessory access by means of back plane connections for COR, Line I/O, Det out etc.
This is a very versatile piece of hardware. 19" rack mount, 4 units high, can immediately be set up as a single channel (CTCSS ) repeater, or a multi channel base station. No controller required. This unit is available as a Narrow Band or Wide Band (20K0F3e) station.

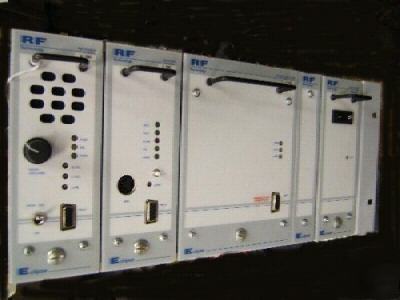

Modules included are 1- R220 receiver, 1- T220 Exciter capable of 25 watts stand alone, 1 - 100 watt Power amplifier, 1- 110 / 220 volt AC power supply. These will operate from 12 Volt DC out of the box.
Other range modules are available for x-band link or repeater.
Single channel programming included. We can quote for multi channel if desired.
Not included: Duplexer, controller or remote panel. These are available at extra cost based upon requirements / specifications.
Cost can be reduced by purchaser supplying a 12 VDC source and not purchasing the power supply offered.
