Subject: #2 cincinnati-milacron tool & cutter grinder #23655

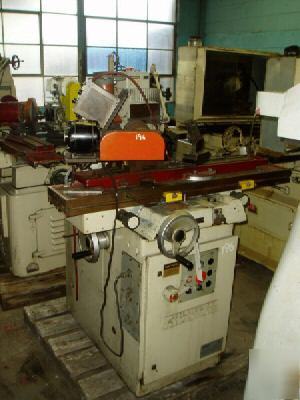

#2 CINCINNATI-MILACRON TOOL & CUTTER GRINDER
New 1988, Serial No 7703AO187-0040, Ltr MT, Model 2,
360-Degree Eccentric Swiveling/Tilting Wheelhead
Swing Over Table, Maximum.............. 10"
Between Tailstock Centers.............. 27"
Between Workhead & Tailstock........... 21.5"
Table Longitudinal Travel.............. 16"
Table Cross Travel..................... 10"
Table Working Surface, W x L........... 6" x 36"
Table Swivels, Degrees................. 180-DEGREES
Grinding Wheelhead Cross Range
Gained by Wheelhead Eccentricity....... 3.5"
Grinding Wheelhead Vertical Travel..... 10.5"
Grinding Wheel Surface-Feet-Minute..... 5985 & 6110 SFPM
(2) Grinding Spindle Speeds............ 3890 & 6530 RPM
Wheelhead Motor, Horsepower............ 1 HP/3400 RPM
Electrical System...................... 220-440/3/60
Floor Space Required, W x D............ 5'9" x 4'9"
Overall Height......................... 5'
Weight, Approximately.................. 2700 LBS
CONDITION: Appears to be in Very Good Condition.
PRICE: F.O.B. OUR WAREHOUSE............ $6,950.00
All machines/equipment subject to prior sale.
