Subject: 16" swisher vertical spindle rotary surface grinder

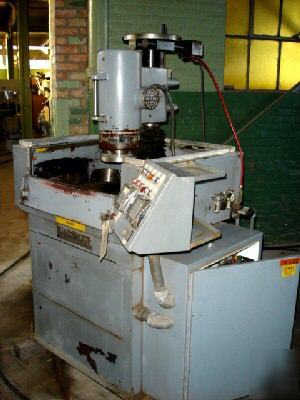

16" SWISHER PRECISION AUTOMATIC VERTICAL SPINDLE ROTARY SURFACE GRINDER
Serial No. 0989-RE96 New - 1989
Motor Driven With 7.5 HP, AC Adjustable Speed, 3 Phase, 60 Cycle Main Spindle Drive. 0.75 HP Table Drive. MD Coolant. Complete Electrical Controls.
Jog Up/Down. Dwell. Cycle Timer. Downfeed Counter. Percentage Load Meter. 16" Electro Magnetic Variable Speed Chuck. Variable Downfeed. Wheel Guard.
Grinder Base to New Wheel: 11"
Magnetic Chuck Surface: 15.75"
Magnetic Chuck to New Wheel: 7.25"
Type 6 Cup Grinding Wheel: 8" x 3"
Dia. x Back x Wall: 3.3" x .75" x .50"
Automatic Downfeed Rate: .0005"-9.999"
