150 ton south bend/johnson obi punch press (14596)

UpUp


Subject: 150 ton south bend/johnson obi punch press (14596)

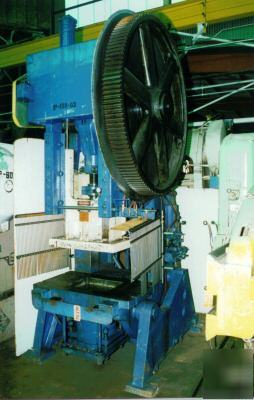

150 Ton South Bend, No. 150BGAC, 6" Str., 22" S.H., 50" x 30" Bed, A.C., 1974
MODEL...................................150 BG-AC
SERIAL NUMBER...........................74049 Year: 1974
Tonnage.................................150
Stroke..................................6"
Shut Height (SDAU)......................22"
Adjustment of Ram.......................5"
Strokes Per Minute (Variable)...........30 to 60
Bed Size................................50" R-L x 30" F-B
Width of Opening Through Back...........26"
Ram Size................................34" R-L x 24" F-B
15 HP Main Motor, 220/440/60/3
Approximate Weight......................40,000 Lbs.
SPECIFICATIONS SUBJECT TO VERIFICATION
