12" x 24" okamoto surface grinder

Subject: 12" x 24" okamoto surface grinder

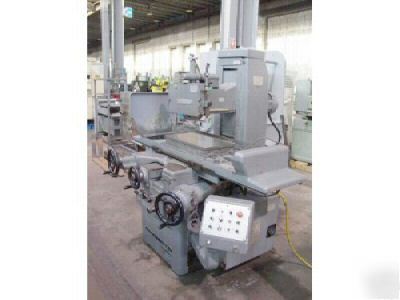

12" x 24" OKAMOTO HORIZONTAL SPINDLE RECIPROCATING SURFACE GRINDER
Model Accugar 124N, New 1986, S/N 6354
Automatic Incremental Power Downfeed, Spark-Out Cycle, Automatic Grinding Cycle, Automatic Wheel Retract after Spark-Out, 12" x 24" Electro-Magnetic Chuck, Above-The-Wheel Diamond Wheel Dresser.
Magnetic Chuck Working Surface....................... 12" x 24"
Longitudinal Travel (X-Axis)......................... 29.5"
Cross Travel (Z-Axis)................................ 13.5"
Vertical Travel (Y-Axis)............................. 19.25"
Max Height Under a New 12" Wheel..................... 13.5"
Table Longitudinal Feeds Range (Variable)............ 1-82 FPM
Cross Feeds Range Continous (Variable)............... 8-40 IPM
Croos Feeds Increments............................... .02 -.8"
Spindle Vertical Feeds Increments.................... .00005"- .0015"
Grinding Spindle Speed............................... 1800 RPM
Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width, Standard....................... 1-1/2"
Grinding Wheel Hole Diameter......................... 5"
Grinding Wheel Motor................................. 5 HP
Hydraulic Pump Motor................................. 2 HP
Electrics (Dual Voltage)............................. 440/3/60
Approximate Machine Dimensions....................... 80" x 95"
Approximate Machine Height........................... 80"
Approximate Machine Weight........................... 5,280 LBS
CONDITION: Appears to be in Very Good Condition !
We will load the machine onto your truck at no charge. Machine is being sold with a 30 Day Money Back Return Guarantee.
