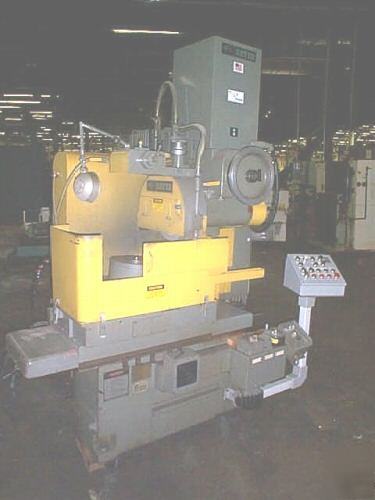

12" ARTER MODEL E-12 ROTARY SURFACE GRINDER Motor Driven With 20 HP, 3 Phase, 60 Cycle AC Spindle Drive. 10 HP Hydraulic Motor. MD Coolant. Complete Electrical Controls. Allen Bradley SLC-100 PLC. Automatic Cycling With Sparkout Counter. Tilting Table. Hydraulically Controlled Over The Wheel Dresser With Coarse And Micrometer Adjustment. 12'' Diameter Electromagnetic Chuck And Controls For Variable, Full And Residual Magnetism. Table And Chuck Jogging. Automatic Lubrication System. Coolant Pump And Tank. Standard Wheel Size: 16" x 2" x 8" Maximum Work Height (New Wheel): 10" Wheel Slide Travel (Maximum): 12" Chuck Speeds(Variable):5-250 RPM Table Feed Rate Reciprocating (Variable): 5-225 IPM Wheelhead Feed Rate (Variable): 0.005-0.220 IPM Wheelhead Rapid Traverse Rate: 3 IPM Approximate Weight: 11,000 lbs |
