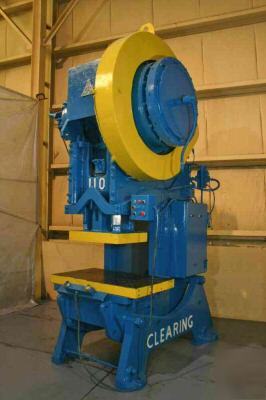

110 ton clearing obi press, 3" stroke, 45 spm, 10 hp

UpUp


Subject: 110 ton clearing obi press, 3" stroke, 45 spm, 10 hp
MODEL ............................... 110
CAPACITY ............................ 110 TONS
STROKE .............................. 3''
SHUT HEIGHT ON BED (SDAU) ........... 21-1/2''
ADJUSTMENT .......................... 4''
STROKES PER MINUTE .................. 45
RAM AREA ............................ 28'' X 21''
BED AREA ............................ 42'' X 30''
BED BOLSTER SIZE .................... 42'' X 30'' X 4''
OPENING THRU BACK ................... 23''
THROAT .............................. 15''
AIR CLUTCH & BRAKE .................. YES
AIR COUNTERBALANCES ................. YES
AIR CUSHION ......................... YES
BACK GEARED ......................... YES
MOTOR ............................... 10 HORSEPOWER
CALL US AT TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
