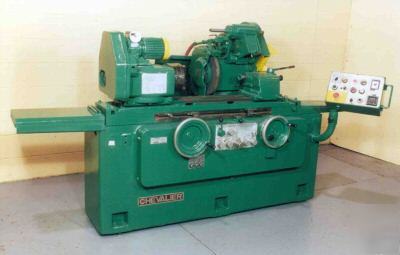

11" X 24" CHEVALIER UNIVERSAL CYLINDRICAL GRINDER
SERIAL .................................... L91155
MODEL ..................................... GU-1124A
NEW ....................................... 1993
MAXIMUM WORK SWING ........................ 10-1/2"
DISTANCE BETWEEN CENTERS .................. 24"
GRINDING WHEEL SIZE ....................... 16" X 1" X 5"
GRINDING WHEEL SPEEDS ..................... (2) 1600 & 1900 RPM
WORKHEAD SPEEDS (VARIABLE) ................ 10 TO 507 RPM
TABLE SPEED (VARIABLE) .................... 2 TO 155 IPM
3-JAW WORKHEAD CHUCK ...................... 8"
SWIVEL WORKHEAD / WHEELHEAD / TABLE ....... YES
DROP-DOWN I.D. GRINDING SPINDLE ........... YES
COOLANT ................................... YES
PLUNGE & SPARKOUT ......................... YES
HYDRAULIC TABLE TRAVERSE .................. YES
I.D. GRINDING SPINDLE MOTOR ............... 2 HORSEPOWER
HYDRAULIC MOTOR ........................... 2 HORSEPOWER
WHEELHEAD MOTOR ........................... 5 HORSEPOWER
